Open Width Circular Knitting Machines

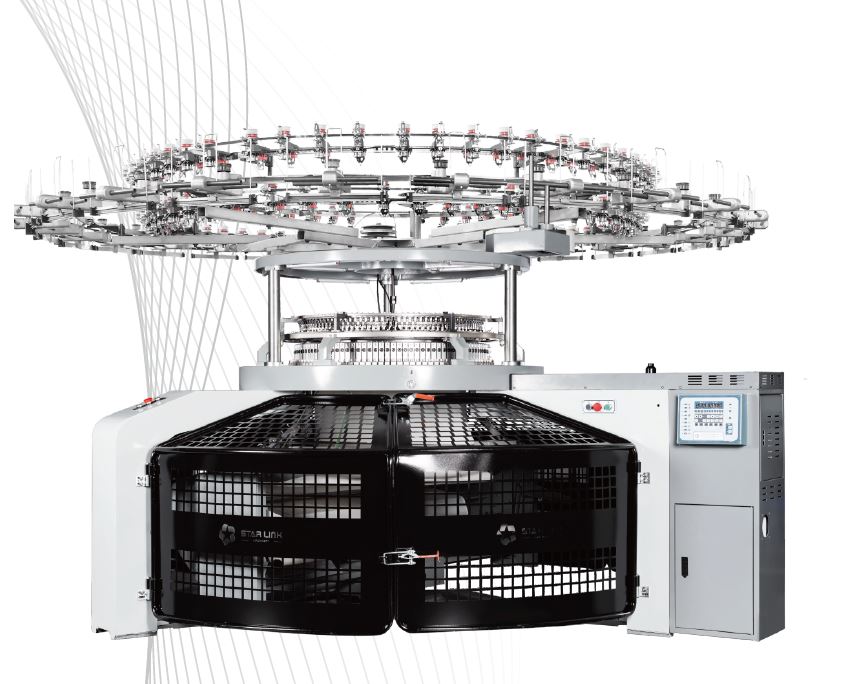

Open Width Circular Knitting Machine

Lycra fabric, if knitted on tubular machines leave crease marks on both sides of tubular fabric that wont be removed during processing and ironing. Quality garment makers do not buy fabric having this crease mark.

Open width machines come with a motorised cutter fitted at the top of winder which cut and opens the fabric before winding and the specially designed winder winds the fabric in open and single stretch form without any fold and crease.

Quality garment makers pay premium for crease less fabric. Knitters knitting on job get 4 times higher conversion for open width lycra fabric. The price of open width machines are only about 20% higher than tubular machines but the knitting charges are 4 times to that of tubular knitting jobs. Production remain same

Specifications:

• Diameter:    26'-38'
• Gauge:    18gg to 36gg
• Feed:    3 to 3.2 in single jersey and 2 to 2.50 in double jersey
• Linear speed:   1.2m/s
• Floor area:   35㎡
• Weight:   2800 - 3500 Kgs

Model: up to3.2F/ inch          TS-GB Single Jersey: 34"
Diameter: 34                            Net Weight: 3500k GS
Gauge: 28                                 Gross Weight :3900K GS
Feeds: 108F                              Speed : 30
Packing size:  LengthXHeight4000X2280X2280

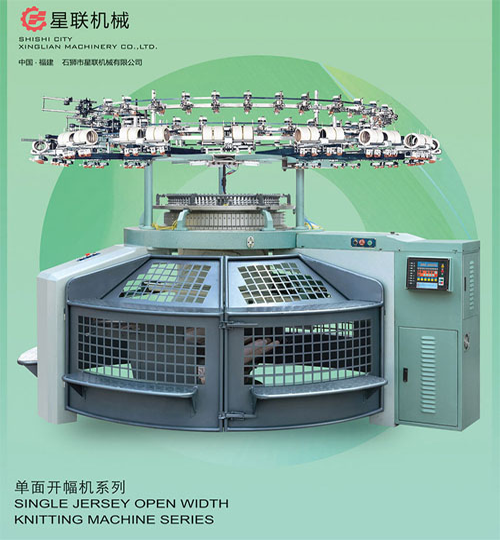

Details for S/J Open width knitting machine

Working aspect
Anti-clockwise(available for clockwise)
Frame
Centralized stitch control
Oiler/lubrication by pulsonic 5.2
Cam parts
SINKER cam 4 track
KNIT 2tracks+Tuck 1 track+MISS 1track
Needles & Sinkers & Cylinder
GROZ-BECKERT
KERN-LIBERS
Insert flake type with Hitachi steel material
Yarn feeding
Positive yam feeding/storage unit by Meminge/Sun
 Lycra feeder by SUN or Meminger (half or all feeders)
Yarn carriers with two holes and one wheel
Creel- All Aluminum tube
Electric
Motor 5.5kw for 34",by Siemens. or Toshiba
Inverter 5.5kw for 34",by Ermerson or Delta
FabricWinder- Special lastest take down device for open width Fabric spreader
Control- LCD touch control panel
3-shift counter
Safety guards unit
Working hour counter


Quick Details

Condition:New
Produnct Type:Other
Type：Circular
Place of Origin:Fujian, China(Mainland)
Brand Name: HUIXING / XINGLIAN
Knitting Style:weft
Knitting Method:Single
Computerized:Yes
Certificate:CE ,ISO9001


Additonal

Needle detectors
Working light
De-duster


Packaging & Delivery

Packaging Details:Wooden Case
Delivery Detail:30 days after receipt of the payment


Spare parts

Extra 100 pcs neeedles & sinkers
Extra 1 pc yarm feeding/storage,2pcs yam carriers
Tool box etc.


Fabric range

Plain jersey,lycra jersey,Pk,twill.silk cotton Lacoste etc.
